Brass Coupling
Brass coupling is used in various applications when connecting two pipes or hoses required. They are frequently used in plumbing, air conditioning, water supply, oil and gas pipelines, and refrigeration systems. Brass couplings offer a reliable and leak-proof connection that can be used under high pressure and temperature.
Product Range

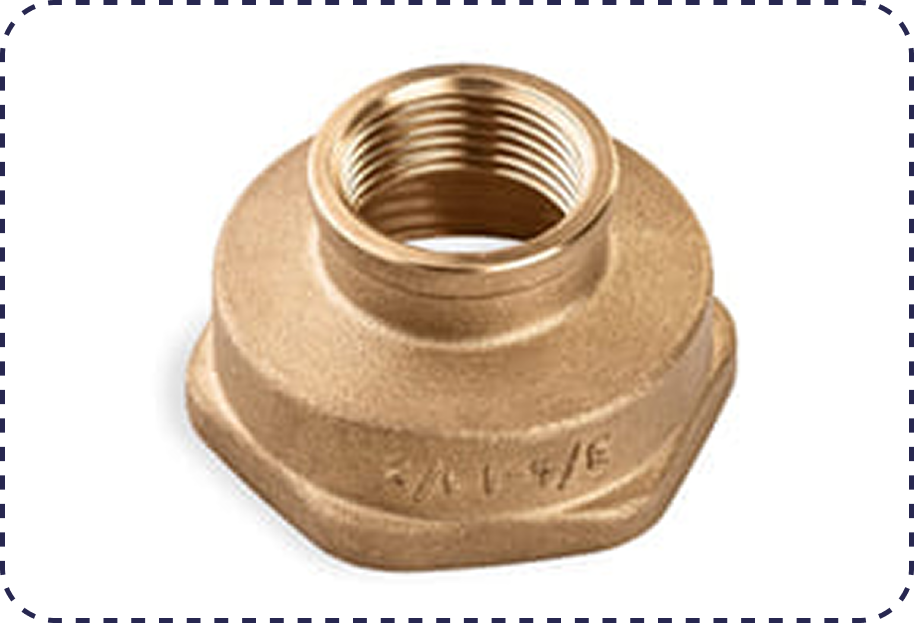

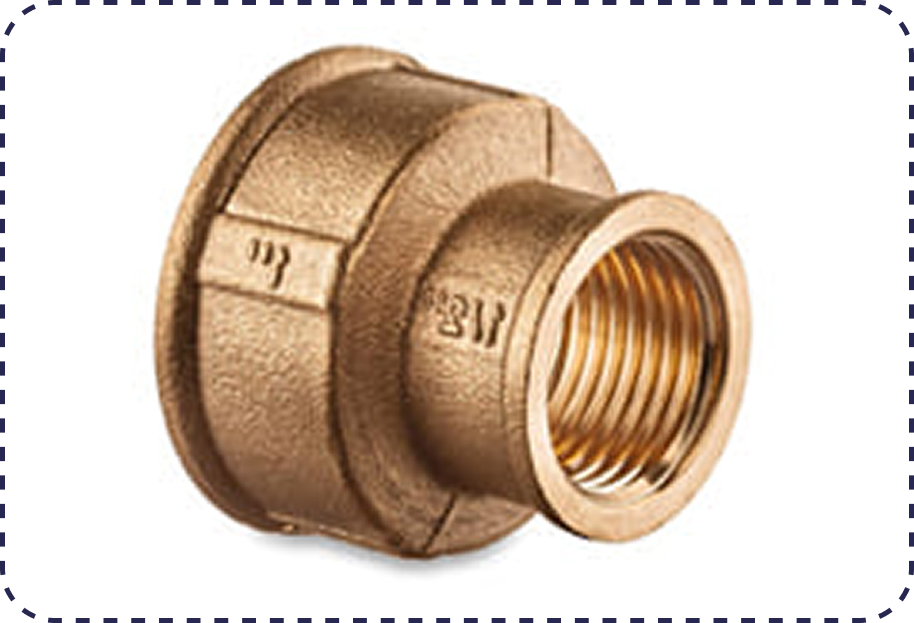

Reducing Coupling, Socket Coupling, Barbed Coupling, Compression Coupling, Reducing Bush, Male & Female Coupling
Material
Brass Alloy: CuZn39Pb3 / CuZn39Pb2 / CuZn38Pb1.5 / CuZn37Pb2 / CuZn40Pb2 / MS 58 / BS2874 / IS 319 (Type I & II)
UNS (ASTM): C35300 / C35330 DZR / C36000 (CDA 360) / C36500 / C37000 / C37100 / C37700 / C37710 / C38500
BS: CZ121 / CZ122 / CZ124 / CZ128 / CZ 131 / CZ132
EN: CW602N / CW603N / CW606N / CW608N / CW612N / CW614N / CW617N
JIS: C3601 / C3602 / C3603 / C3604 / C3605 / C3712 / C3771
Any special brass material compositions as per customer’s requirement.
Standard Thread
ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads Any threads as per client specification.
Tolerance
With tight tolerance ±0.005 specific tolerances can be discussed with the customer, given the part material, size, and geometry.
Size
1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, and 3″ OR as per custom requirements.
Finish
Natural Clean / Nickel Plated / Electro-Tin Plated / Silver Plated / Copper Plated / Zinc Plated / Chrome Plated / Specified Surface Finish.
All kinds of Brass Coupling can be developed and supplied exactly as per customer specifications.
