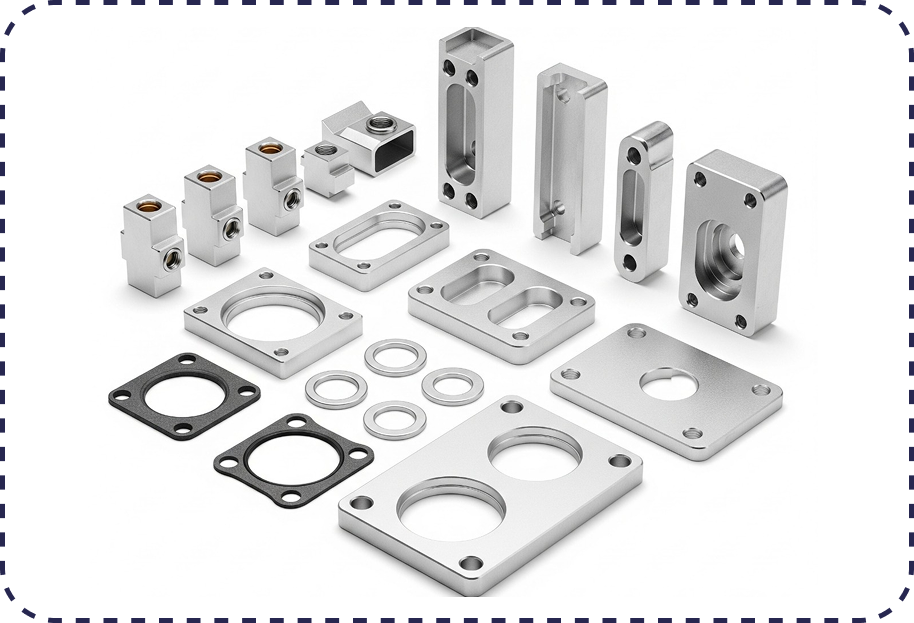

CNC-VMC machined components

We machine custom metal alloy like aluminum, brass, and stainless steel parts with ±0.10 mm precision. From 5-axis prototypes to mass production, each CNC component leaves our floor fully inspected, burr-free, and dimensionally exact. If you need custom OEM CNC parts shipped without delays, from a factory that machines to specification and not just to promise,

Materials

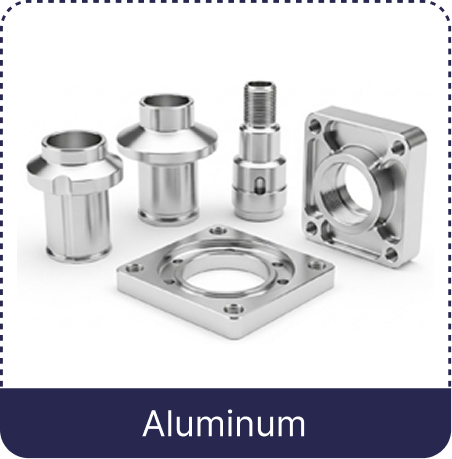

Aluminum – 6061, 6063, 6082, 7075
Quick to cut. 6061, we slow the finish pass. Threads need sharp taps and they shred.

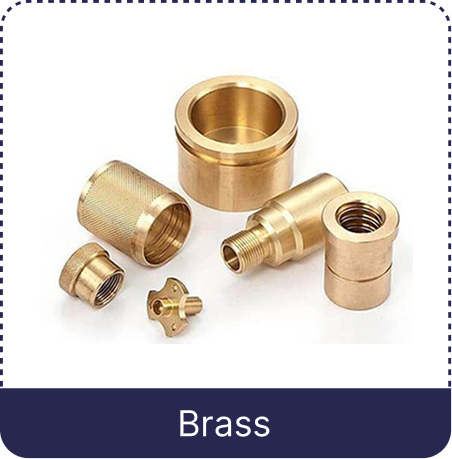

Brass – C360, CZ121, C385
No coolant, full RPM. Chip clears easy. Tight finish in one pass.

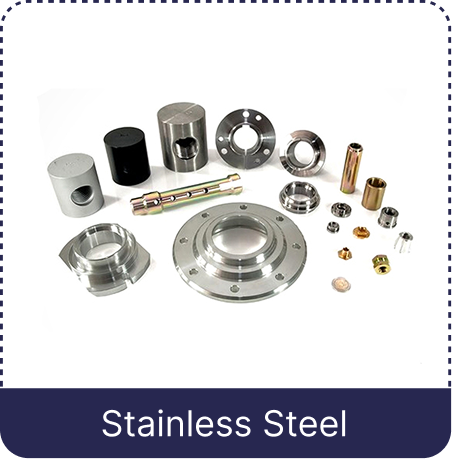

Stainless – 304, 316, 303
Gummy. We use high feed mills and sharp inserts. Slow the last 0.5 mm.

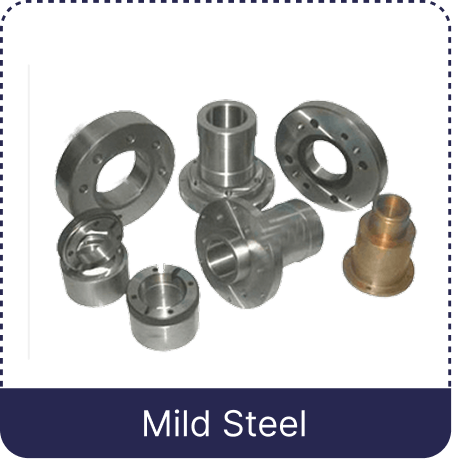

Mild Steel & Carbon Alloys
Standard runs for brackets, fixtures, and tooling.

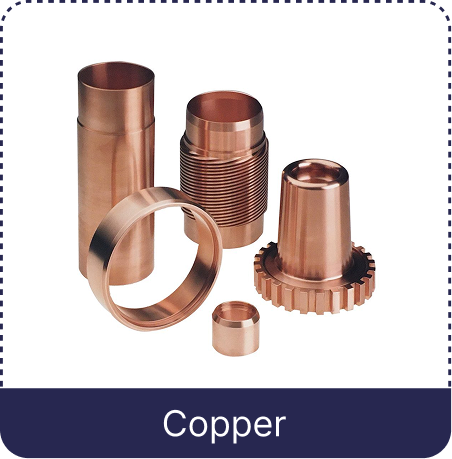

Copper & Bronze
Soft and grabby. We reduce depth per cut, keep tools razor sharp.

Milling
(3-axis, 4-axis, 5-axis)

Flats, keyways, slotted blocks
Frames, plates, clamps
Engraving, chamfering, counterboring
Block size up to 400 x 300 mm
Nested setups for mid-volume production

Finishing

Vibratory deburr, manual polish
Chamfers on all thread exit
Surface: nitric, brushed, matte, buff
Plating: nickel, gold, tin, silver, as per requirements
Press-fit inserts, heat-set threads
QR code labels, every part batch tagging

Industries

Automotive
Aerospace & UAV
Medical & Diagnostic
Industrial Automation
Consumer Products

Quality

First Article Checks: Before full run
In-Process Inspection: Every 5–10 pcs, adjusted on the fly
Final QA: Batches tagged, verified, and signed
Tooling Maintenance: Cutter wear logs, tool presetting
Machine Calibration: Verified monthly with gauge block
Operator Skill: Jobs stay with same machinist when possible

Tolerances & Threads

Threads: UNC, UNF, Metric, BSP, NPT
Tapping: Blind, through, vertical, side
Bores: Reamed to ±0.05 mm
Tolerances: ±0.05–0.10 mm production, tighter on prototype.

All kinds of CNC & VMC Components can be developed and supplied exactly as per customer specifications.
