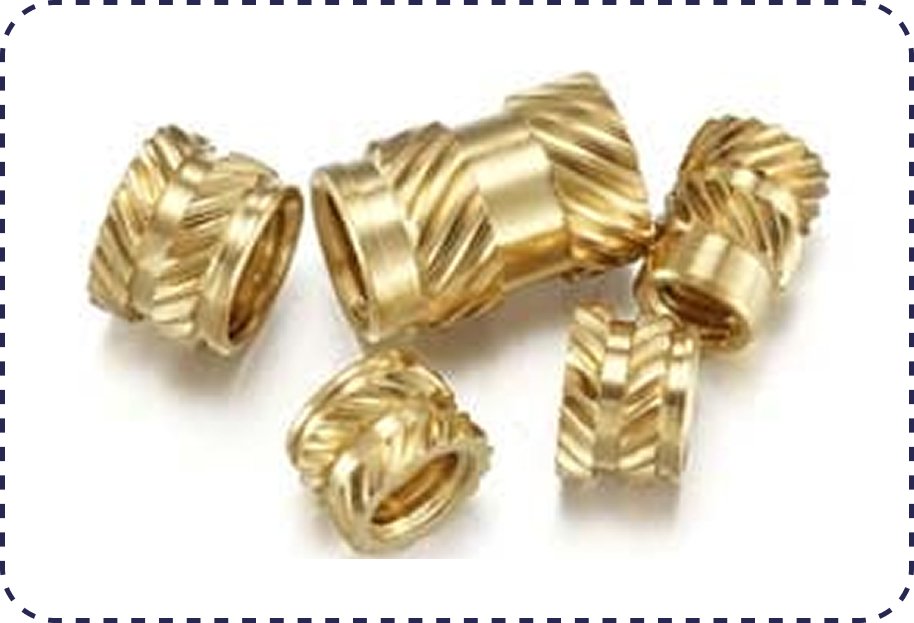

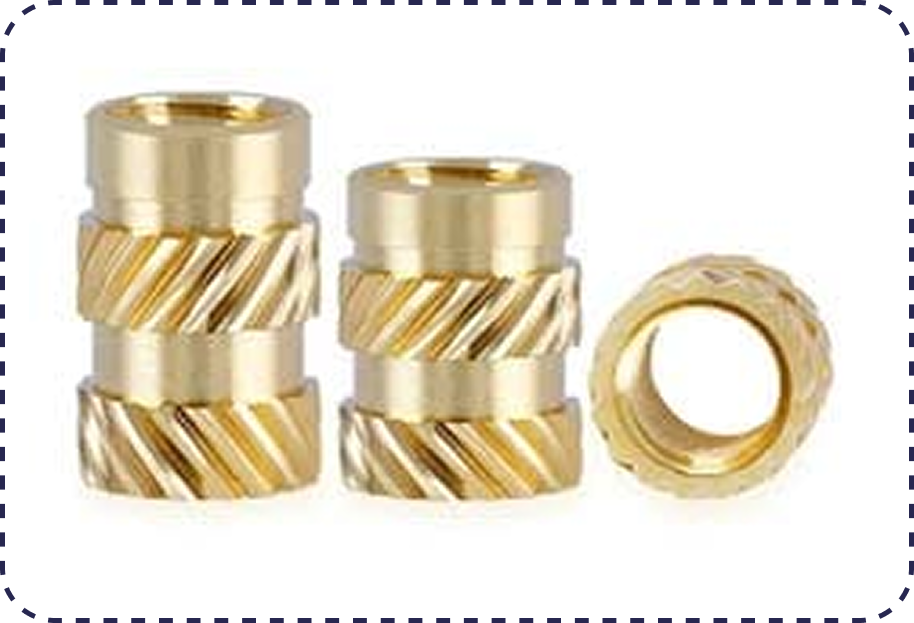

Brass Knurling Inserts
Brass knurling inserts are threaded components that give strength to plastic and soft material assemblies. The knurled surface locks firmly into the base material, preventing slip during use. It keeps screws and bolts tight, even after multiple uses. These brass inserts are widely chosen in plastic molding, electronics, and industrial assemblies.
Product Range
- Heat-Set Brass Inserts
- Press-Fit Brass Inserts
- Ultrasonic Brass Inserts
- Expansion Type Inserts
Features
- Strong Thread Grip
- Durable and Corrosion-Resistant
- Precise Fit
- Easy to Install
Applications
- Plastic Molding
- 3D Printing Components
- Automotive Parts
- Electronics Housings
- Industrial Assemblies
Sizes
Standard 5 mm to 25 mm; custom lengths available
Tolerance
±0.1 mm typical; tighter tolerances on request
Quality
In-process Inspection with the International standard gauges Each component order undergoes stringent quality assurance processes to assure accuracy and precision to the client’s specifications. and 100% inspection before shipment. Pre-shipment sample on client’s demand.
Material
Brass Alloy: CuZn39Pb3 / CuZn39Pb2 / CuZn38Pb1.5 / CuZn37Pb2 / CuZn40Pb2 / MS 58 / BS2874 / IS 319 (Type I & II)
UNS (ASTM): C35300 / C35330 DZR / C36000 (CDA 360) / C36500 / C37000 / C37100 / C37700 / C37710 / C38500
BS: CZ121 / CZ122 / CZ124 / CZ128 / CZ 131 / CZ132
EN: CW602N / CW603N / CW606N / CW608N / CW612N / CW614N / CW617N
JIS: C3601 / C3602 / C3603 / C3604 / C3605 / C3712 / C3771
Any special brass material compositions as per customer’s requirements.
Standard Thread
ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads Any threads as per client specification.
Finish & Coating
Natural Plating, Nickle Plating, Tin Plating, Zinc Plating, Gold Plating, Silver Plating, Chrome Plating, As per customer’s specification.
All kinds of Brass Threaded Insert can be developed and supplied exactly as per customer specifications.
