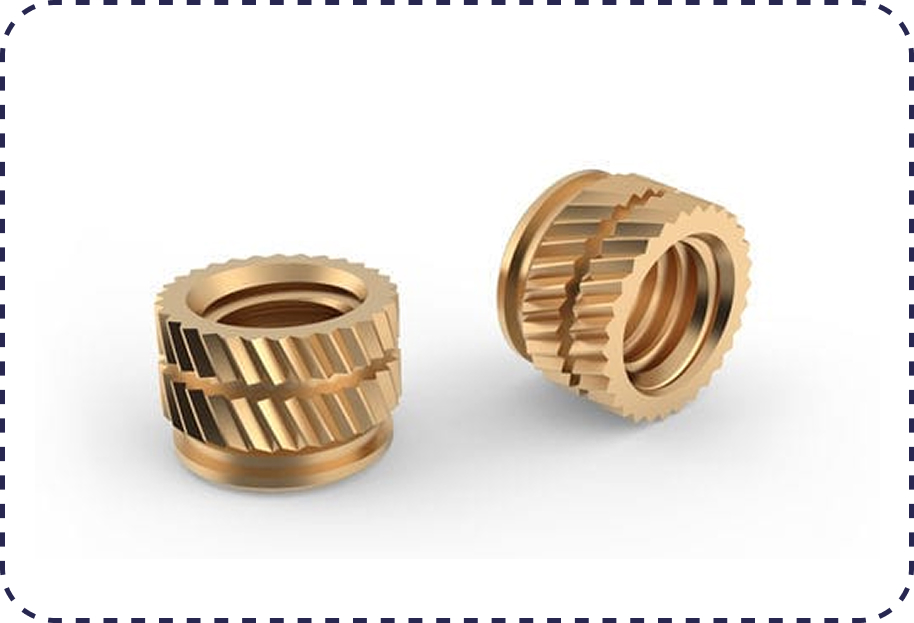

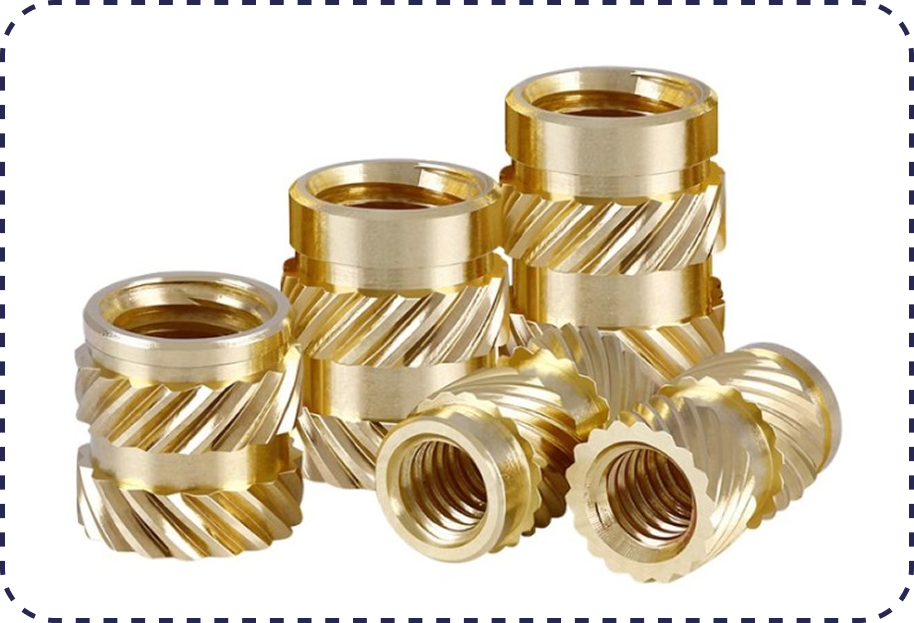

Brass Threaded Inserts
We do not manufacture brass threaded insert just for specification. We cut them to perfect fit that hold, moves, flexes, and shrinks over time. Every batch we dispatch goes to through tight quality checks, quality thread gauge inspections, and real press-fit logic.
Product Range
- Straight Wall Inserts
- Flanged Inserts
- Hex Body Inserts
- Slotted or Split Inserts
- Closed-End Inserts
Sizes
Sizes available from M2 to M30 and up to M36, and as per Custom Designs and requirements.
Quality
In-process Inspection with the International standard gauges Each component order undergoes stringent quality assurance processes to assure accuracy and precision to the client’s specifications. and 100% inspection before shipment. Pre-shipment sample on client’s demand.
Material
Brass Alloy: CuZn39Pb3 / CuZn39Pb2 / CuZn38Pb1.5 / CuZn37Pb2 / CuZn40Pb2 / MS 58 / BS2874 / IS 319 (Type I & II)
UNS (ASTM): C35300 / C35330 DZR / C36000 (CDA 360) / C36500 / C37000 / C37100 / C37700 / C37710 / C38500
BS: CZ121 / CZ122 / CZ124 / CZ128 / CZ 131 / CZ132
EN: CW602N / CW603N / CW606N / CW608N / CW612N / CW614N / CW617N
JIS: C3601 / C3602 / C3603 / C3604 / C3605 / C3712 / C3771
Any special brass material compositions as per customer’s requirements.
Standard Thread
ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads Any threads as per client specification.
Finish & Coating
Natural Plating, Nickle Plating, Tin Plating, Zinc Plating, Gold Plating, Silver Plating, Chrome Plating, As per customer’s specification.
All kinds of Brass Threaded Insert can be developed and supplied exactly as per customer specifications.
